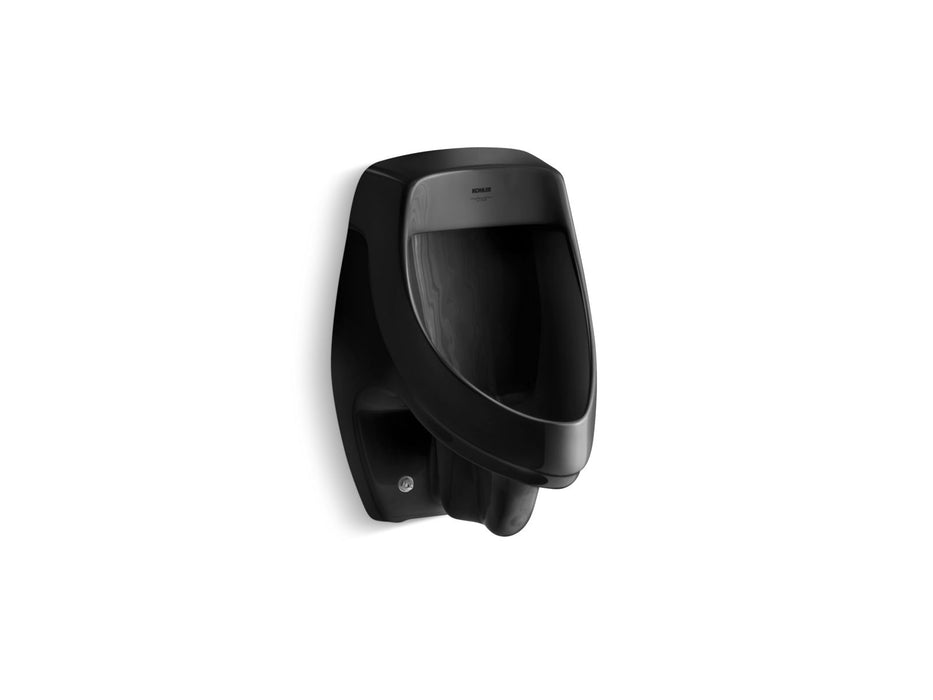

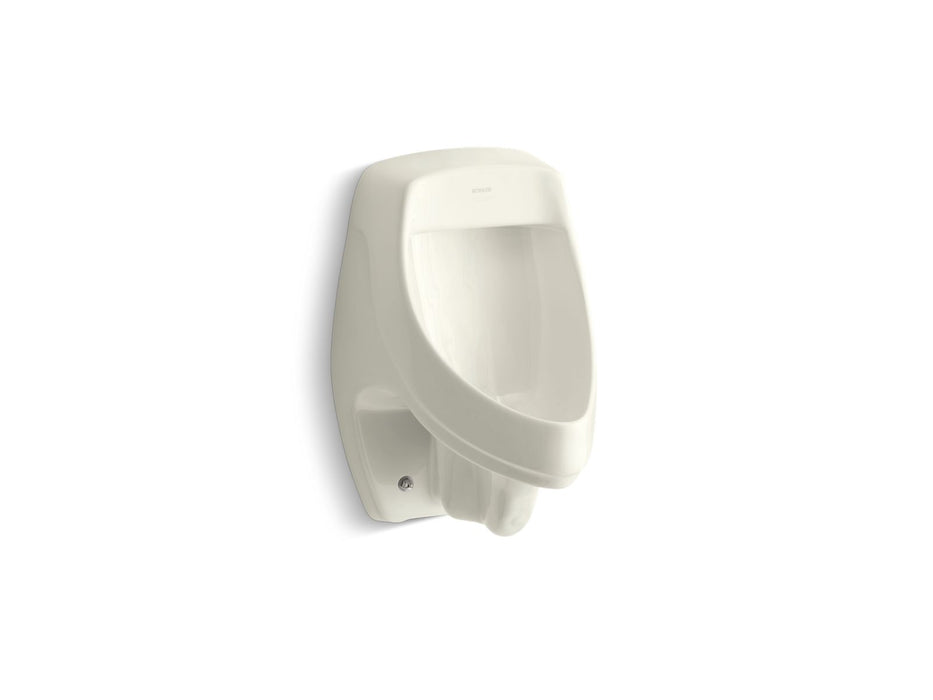

KOHLER K-5016 Dexter™ Siphon-jet Half-stall 0.5–1.0 GPF Urinal, Rear Spud
$262.10
$196.57
This product is currently not available for online purchase.
To explore this item, check availability, or get expert design guidance, schedule a complimentary showroom appointment with one of our design experts!
The straightforward design of the Dexter elongated urinal brings KOHLER styling and functionality to any application. The compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This model features a 3/4" rear spud.
- Siphon jet
- 3/4" (19 mm) rear spud
- 0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected
- Includes inlet and outlet spuds and hangers
- Includes anti-backsplash walls
- 14-1/2"(368 mm) extended rim.
- Product weight: 37 lb
- Material: Vitreous China
- Installation: Wall-mount
- WaterSense certified
- ADA compliant
- Suitable for commercial use
- KOHLER® One-Year Limited Warranty
Recommended Products/Accessories
Additional Resources
CAD & BIM Files
Revit (BIM) · 3D DWG · 3D DXF · SketchUp · 2D DWG - Front · 2D DWG - Plan · 2D DWG - Side · 2D DXF - Front · 2D DXF - Plan · 2D DXF - Side
