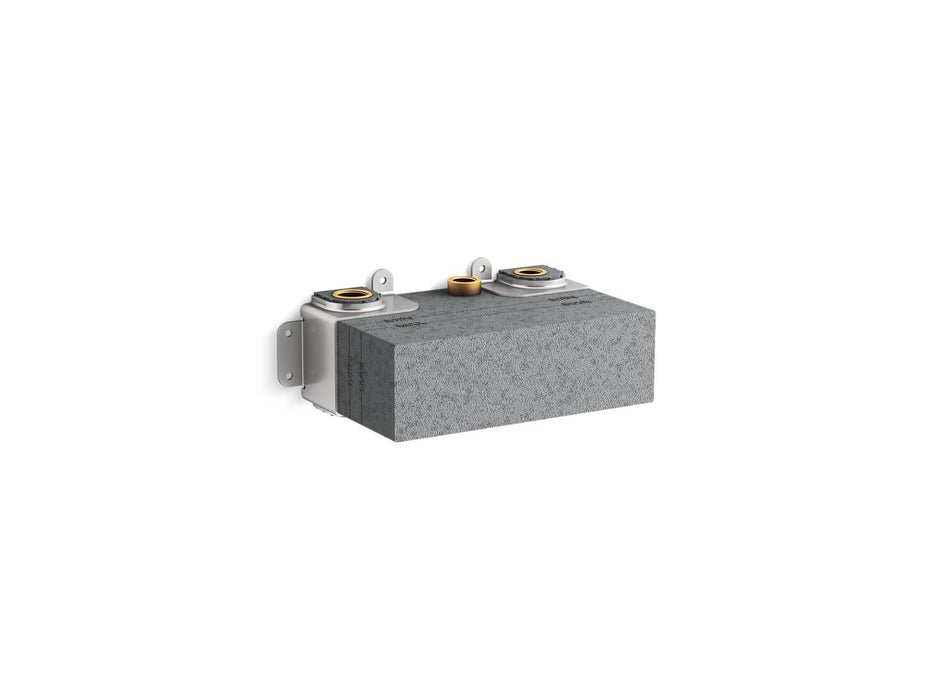

Kallista P34723-00 Kallista Recessed Mech Th Valve 2Ot
$980.00
$735.00
This product is currently not available for online purchase.
To explore this item, check availability, or get expert design guidance, schedule a complimentary showroom appointment with one of our design experts!
Kallista Recessed Mech Th Valve 2Ot
- High-flow thermostatic mixing valve
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
- Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
- 3/4" female NPT inlet connections
- 1/2" female NPT outlet connections
- Service stops with integral filters
- Antiscald protection
- Integrated adjustable high-temperature limit stop to control maximum water temperature
- Adjustable comfort setting (preset at approximately 104°F)
- Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
- Dimensions: 13.688 x 8.5 x 7.563 in
- Weight: 8.72 lb
Additional Resources:
Specification Sheet
Installation Sheet
