SKU Q390A1061/U

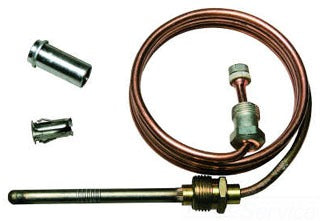

Honeywell Q390A1061 36" Thermocouple
Original price
$21.16
Original price
$21.16
-
Original price
$21.16
Original price
$21.16
Current price
$10.98
$10.98
-
$10.98
Current price
$10.98
Availability:
in stock, ready to be shipped
The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts.
- Thermocouple
- Model Q390
- Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
- Length 36 Inch
- Connection Type 11/32 Inch-32 Tpi Male Connector Nut
- Application Pilot Burner, Standing Pilot Gas Fired Heating System, Safety Control Power Unit
- Approval Csa
- Additional Information Voltage Rating 30 Millivolt
- Open Circuit Output 26 To 32 Millivolt
- Resistance 0.02 Ohm
- Includes Adapter And Push-In Clip
