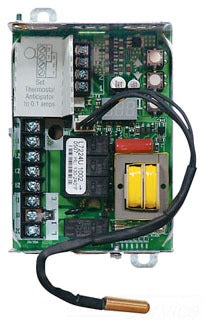

Honeywell L7224U1002 Temperature Controller

Honeywell L7224U1002 Temperature Controller

• Temperature Controller
• Brand Name Aquastat[R]
• Model L7224U
• Type Well Mount, Horizontal/Vertical Position, Flush Mounted Remote
• Temperature Range -30 To 150 Deg F
• Maximum Temperature Rating 130 To 240 Deg F (High Limit), 110 To 220 Deg F (Low Limit)
• Contact Rating 7.4 Amp At 120 Volt Ac Full Load/44.4 Amp Inrush Locked Rotor (Burner/Circulator), 7 Volt Amp At 120 Volt Ac 60 Hertz
• Application Circulator, Oil Burner, Boiler
• Approval Ul
• Additional Information Overall Dimension 4-1/4 Inch Width X 2-5/8 Inch Depth X 7-1/8 Inch Height
• Differential Temperature Rating 5 To 20 Deg F Adjustable (High Limit), 10 To 25 Deg F Adjustable (Low Limit)
• Humidity 0 To 95 Percent Relative, Non-Condensing
