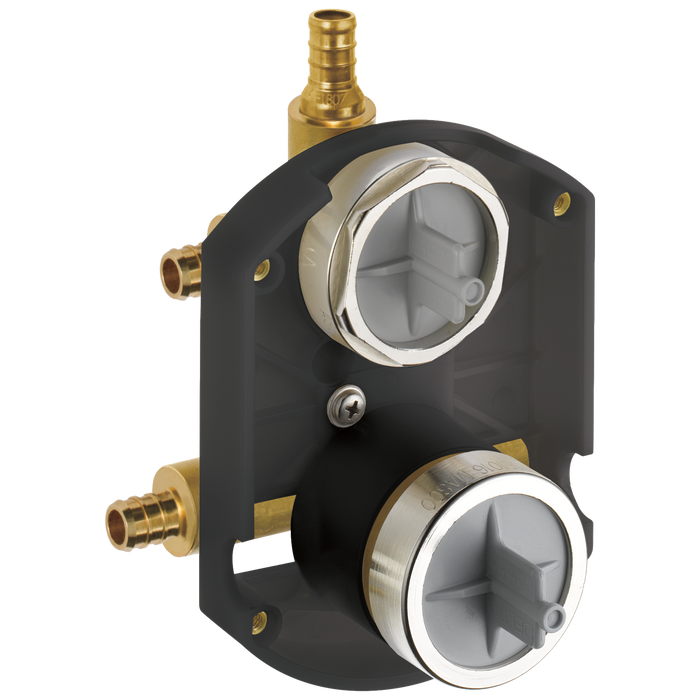

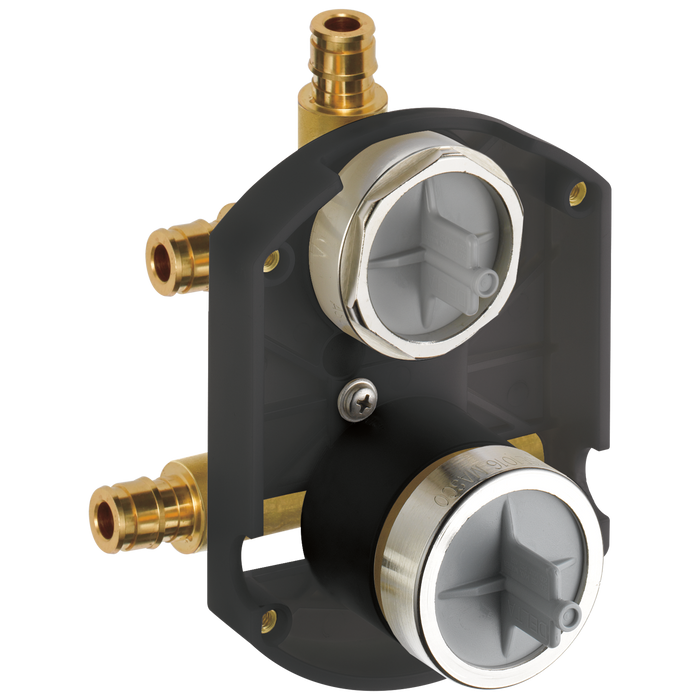

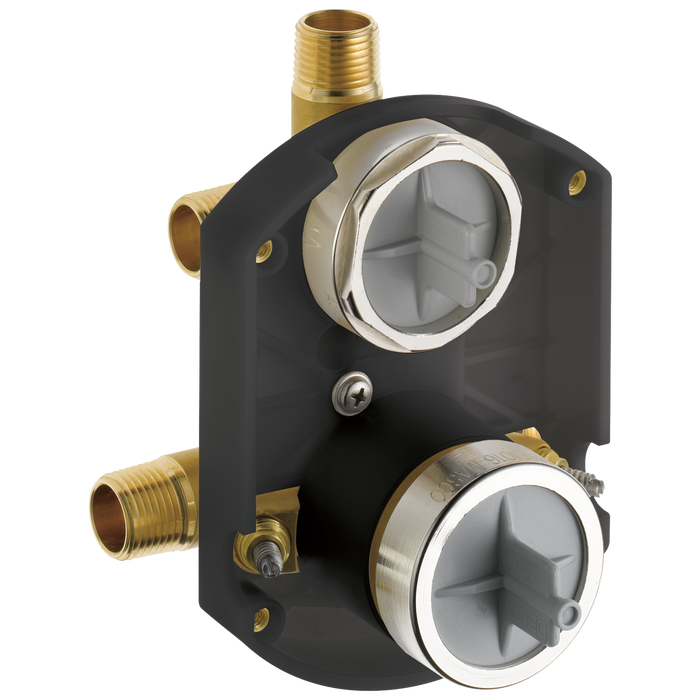

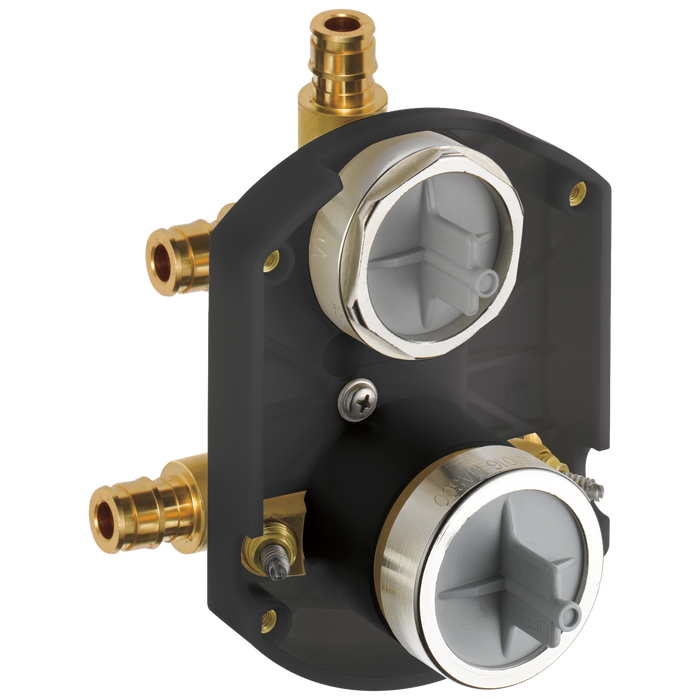

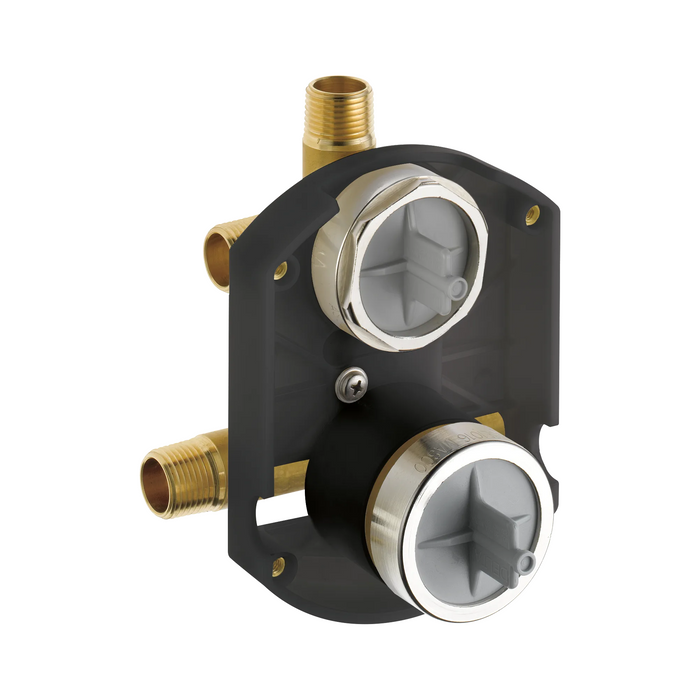

Delta R22000 MultiChoice Universal Rough-In Valve

MultiChoice Universal Rough-In Valve

• Rough-in kit only
• Must purchase trim kit to complete the unit
• One-Piece forged brass valve body with stops
• Accepts Delta (3) three or (6) six function diverter cartridges plus all MultiChoice® cartridges
• Back-to-back installation capability
• WS = With Stops
• Plug provided for 3 setting diverter installation
• Back-to-Back installation capabilities
• Standard installation accommodates finished wall thickness up to 1 1/8"
• Forged brass body
• Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat → 1/2" PEX cold expansion connections
• 1/2" outlets and connections
• Sweat onto 1/2" C.W.T. or accepts 1/2" iron pipe, PEX or CPVC adapters → 1/2" PEX cold expansion connections
• Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat →1/2" PEX crimp connections
• Sweat onto 1/2" C.W.T. or accepts 1/2" iron pipe, PEX or CPVC adapters →1/2" PEX crimp connections
• Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
