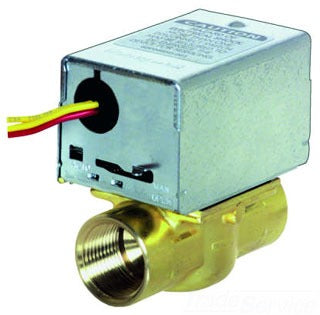

Honeywell V8043E1020 Zone Valve

Honeywell V8043E1020 Zone Valve

• Zone Valve
• Brand Name Quickfit[R]
• Model V8043, 5000
• Type 2-Way, Straight-Through
• Applicable Standard Ul, Csa
• Nominal Size 1 Inch
• End Connection Soldered X Soldered
• Actuation Type 2-Position, Spring Return To Close
• Valve Position Normally Open
• Body Material Brass
• Valve Timing 15 Second (Open)
• Input Supply Rating 7.7 Volt Amp At 24 Volt Ac 50/60 Hertz 0.32 Amp
• Temperature Rating 50 To 200 Deg F (Fluid), 125 Deg F (Ambient)
• Pressure Rating 20 Psi (Close-Off), 125 Psi (Static)
• Media Handled Hot Water
• Inclusions/Features Low Voltage, Manual Opener, Spst End Switch
• Application Hydronic Control
• Additional Information Lead-Free
• Overall Dimension 3-11/16 Inch Width X 2-3/8 Inch Depth X 4 Inch Height
• Flow Capacity 3.5 Cv
• Electrical Connection 18 Inch Lead
• Material Brass (Seat), Stainless Steel (Stem), Epdm Rubber (Packing), Buna-N Rubber Ball (Plug/Ball/Disc)
