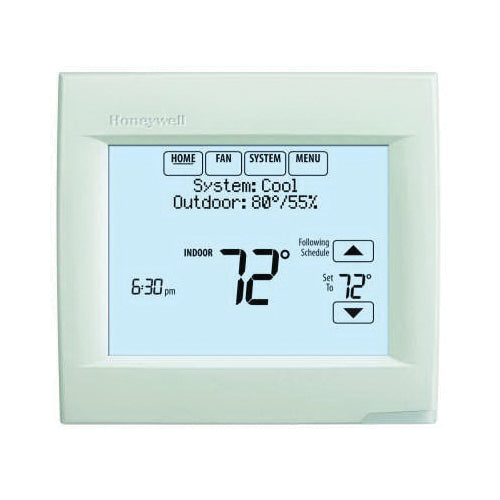

Honeywell TH8320R1003/U VisionPRO 8000 Programmable Thermostat, 18 - 30 VAC, 750 mV

Honeywell Programmable Thermostat, Series: VisionPRO® 8000, 18 - 30 VAC, 750 mV, 50/60 Hz, 7 days Program or Non-Programmable Programmability, Auto/Manual, Dual Powered Battery, Hardwired, Upto 2 Heat/2 Cool Conventional System, Upto 3 Heat/2 Cool Heat Pump Stages, Heat-Off-Cool-Auto-EM Heat (System), Auto-On-Circ-Follow Schedule (Fan) Switch Position, 10 sq-in Touchscreen Display, 40 - 90 deg F Heating, 50 - 99 deg F Cooling Temperature Settings, 32 - 120 deg F Operating, 5 - 90% RH Non-Condensing Humidity Rating, Horizontal Mounting, Y:1 A, Y2:0.6 A Cool Current, R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 S1 Terminal Designation, Screw Terminal Electrical Connection, G:0.5 A Fan Current, W2 (AUX):0.6 A Heat Current, Arctic White, 4-5/8 in H x 4-15/16 in W x 1-1/8 in D

• Smart schedule programs in seconds for any lifestyle and patented interview based programming and installer setupRedLINK&trade
• wireless communication and increase profit per job by including RedLINK&trade
• accessories that provide comfort and convenienceRedLINK&trade
• accessories include the RedLINK&trade
• internet gateway, portable comfort control (PCC), wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, TrueSTEAM&trade
• humidifier with wireless adapter and TrueZONE&reg
• zoning panel with wireless adapterLight commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day, remote setback requires the THM5421R1021 equipment interface modulePlain language set up, no manual neededAlerts and user interactions log keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user errorSaves time in troubleshooting and points the technician in the right direction, the alert and user interaction logs are viewable on a computer after you download them from the thermostat to a MicroSD cardCustomizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alertsMicroSD port for copying the installer setup, customizable reminders, custom events and holidays to multiple thermostatsMicroSD port for adding the dealers contact information on the screen1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/coolingThree assignable outputs on the equipment interface module to control humidification, dehumidification, ventilation or a stage of heating/cooling, the TH8110 and TH8320 models require the use of a wireless indoor sensor to control humidification and dehumidificationOne assignable input can be used with a wired outdoor, indoor or discharge sensorFour assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leakExtend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminalsPrecise temperature control (+/- 1 deg F) for reliable and consistent temperatureMultiple staging options to provide comfort or energy savings
