SKU NL99508

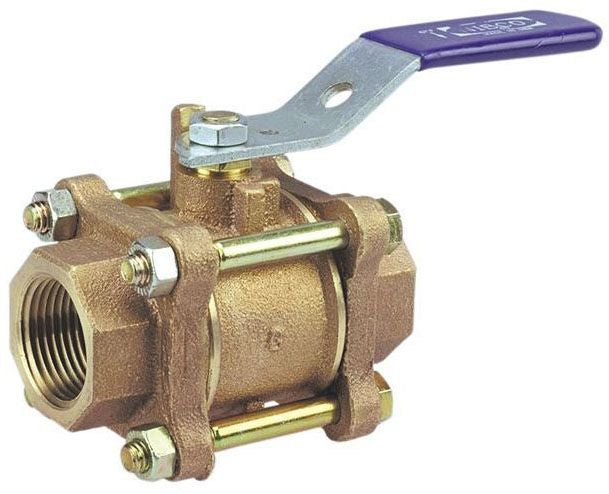

NIBCO T-595-Y_3/4 3/4" Three-Piece Threaded Full Port Ball Valve
Original price
$246.40
Original price
$246.40
-
Original price
$246.40
Original price
$246.40
Current price
$103.49
$103.49
-
$103.49
Current price
$103.49
Availability:
Low stock
Nibco T-595-Y_3/4 Ball Valve
- Ball Valve
- Model T-595-Y
- Type 3-Piece
- Applicable Standard Mss Sp-110
- Actuation Type 1/4 Turn, Lever Handle
- Nominal Size 3/4 Inch
- End Connection Female Threaded X Female Threaded
- End To End Distance 3 Inch
- Ball Material Astm B124 C37700 Brass Alloy/Astm B16 C36000 Hard Chrome Plated Brass Alloy
- Body Material Astm B584 C84400 Bronze Alloy
- Stem Material Astm B371 C69430/Astm B99 C65100 Silicon Bronze Alloy
- Seat Material Ptfe
- Seal Material Ptfe Packing
- Handle Material Zinc Plated Clear Chromate Plastisol Coated Steel
- Port Type Full
- Temperature Rating 400 Deg F
- Pressure Rating 600 Psi Non-Shock Cwp, 150 Psi Swp
- Inclusions/Features Blowout Proof Stem Design, Bronze Trim, Brass Threaded Pack Gland, Insulated Handle, Thrust Washer, Bolt, Nut, Dezincification Resistant
- Application Commercial, Mechanical, Industrial, Compressed Air, Chilled Water
- Additional Information Packaging Quantity 5 Per Box
- Warranty 5 Year Limited
