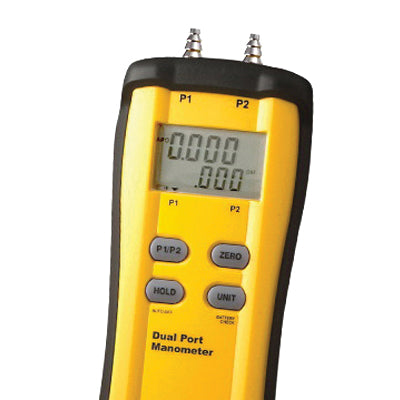

FieldPiece SDMN5 Manometer Dual Port

Measure duct pressures to balance air flowResolution down to 0.01? WC for static pressure measurement-60.0? WC to 60.0? WC rangeIncludes two 5/16? adapters for measuring inlet and outlet pressuresThe SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16” to 5/16” adapter for measuring gas inlet and outlet pressures.The SDMN5 evolved as a result of testing pressures in the field for 20 years. Its range and resolution allow you to measure the HVAC applications you run into everyday in HVAC/R field service. Measure gas pressure on the inlet and outlets with the standard 3/16” fittings or the included adapters for 5/16” ports, take static pressure measurements across a blower and get the pressure differential with the push of a button to check drafts. Whether you’re holding the ergonomic standalone shape in your hand or hang the SDMN5 on the unit with the magnetic hanger to fill out a work order, the SDMN5 make HVAC/R field service easier and faster, with less fatigue than the other guys.Includes:Dual-Port Manometer – SDMN52 – 3/16” Tubes with Brass Fittings2 – 3/16” to 5/16” Tube Adapters – RMA3169V Battery (installed)Operator’s Manual

• Measures duct pressure to balance air flowResolution down to 0.01 in WC for static pressure measurement0.01 in WC resolution15 min auto power offOver range - OL or -OL is displayed200 hr battery life with low battery LED indicator on displayedBattery - single standard 9 V, NEDA 1604, JIS 006P, IEC 6F22Compatible media - dry and non-corrosive gasesSDMN5 dual-port manometer, 2-3/16 in tubes with brass fittings, RMA316 2-3/16 - 5/16 in tube adapters, 9 V battery (installed), operator's manual, (2) 5/16 in adapters for measuring inlet and outlet pressures
