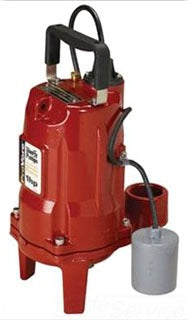

Liberty PRG101A Grinder Pump
- Grinder Pump
- Brand Name Provore[R]
- Model Prg
- Type Submersible, Automatic, 1-Stage, Wide Angle Float
- Applicable Standard Csa (Canada And Us), Sspma, Iso 9001
- Discharge Size 2 Inch
- End Connection Threaded Outlet
- Overall Dimensions 11 Inch Width X 17-5/8 Inch Height
- Flow Rate 28 Gpm At 30 Foot
- Discharge Head 50 Foot
- Casing Material Class 30 Cast Iron
- Shaft Material 303 Stainless Steel
- Housing Material Class 30 Cast Iron
- Cutter Material 440 Stainless Steel
- Warranty 3 Year
- Shaft Seal Details Unitized Silicon Carbide Mechanical Seal
- Power Cord Length 10 Foot
- Power Rating 1 Hp
- Input Supply Rating 115 Volt Ac 60 Hertz 1-Phase 12 Amp
- Speed Rating 3450 Rpm
- Temperature Rating 140 Deg F (Liquid), 105 Deg C (Stator), 221 Deg F (Thermal Overload)
- Motor Type Nema B Class B Insulation, Oil-Filled, Thermal Overload Protection
- Inclusions/Features Cast Iron Impeller, Advanced V-Slice Cutting System, Buna-N O-Ring
- Application Residential Sewage
- Additional Information Finish Powder Coated
- Current Rating 47.5 Amp (Locked Rotor)
- Minimum Bearing Life 50000 Hour
