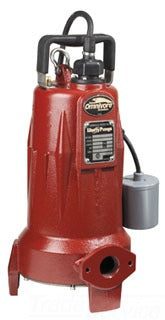

Liberty LSG202M Grinder Pump
- Grinder Pump
- Brand Name Omnivore[R]
- Model Lsg200
- Type Uni-Body, 1-Stage, 1-Piece
- Applicable Standard Csa (Canada And Us), Iso 9001
- Discharge Size 1-1/4 Inch
- End Connection 1-1/4 Inch Female Threaded Discharge
- Overall Dimensions 9-1/2 Inch Width X 19-1/2 Inch Height
- Flow Rate 50 Gpm At 10 Foot
- Discharge Head 185 Foot
- Casing Material Powder Coated Class 25 Cast Iron
- Shaft Material 300 Series Stainless Steel
- Housing Material Powder Coated Class 25 Cast Iron
- Cutter Material 440 Stainless Steel
- Warranty 3 Year
- Shaft Seal Details Unitized Silicon Carbide
- Power Cord Length 25 Foot
- Power Rating 2 Hp
- Input Supply Rating 208/230 Volt Ac 1-Phase 60 Hertz 15 Amp
- Speed Rating 3450 Rpm
- Temperature Rating 140 Deg F (Liquid)
- Motor Type Oil Filled
- Inclusions/Features Upper And Lower Ball Bearing, Quick Connect Power Cord, Flange, Manual Operation
- Exclusions Float Switch
- Application Commercial And Residential Sewage
- Additional Information Thermal Overload Temperature 221 Deg F
