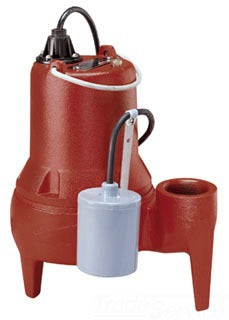

Liberty LE51M-2 Sewage Pump

Liberty LE51M-2 Sewage Pump

• Sewage Pump
• Model Le50
• Type Submersible, Manual
• Applicable Standard Ul, Csa (Canada And Us), Sspma
• Discharge Size 2 Inch
• End Connection Threaded X Threaded
• Overall Dimensions 10.9 Inch Length X 7.5 Inch Width X 12 Inch Height
• Flow Rate 141 Gpm At 5 Foot
• Discharge Head 24 Foot
• Casing Material Class 25 Cast Iron
• Shaft Material Stainless Steel
• Housing Material Class 25 Cast Iron
• Impeller Material Thermoplastic Elastomer
• Impeller Design 2-Vane Semi Open
• Warranty 3 Year
• Shaft Seal Details Unitized Ceramic Carbon Mechanical Seal
• Solid Size 2 Inch
• Power Cord Length 25 Foot
• Power Rating 1/2 Hp
• Input Supply Rating 115 Volt Ac 60 Hertz 1-Phase 12 Amp
• Speed Rating 1725 Rpm
• Temperature Rating 140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal Overload)
• Motor Type Oil Filled Permanent Split Capacitor, Class B Insulation And Nema B Design
• Inclusions/Features Gray Class 25 Cast Iron Volute/Leg/Housing, Stainless And Brass Fastener
• Additional Information Finish Powder Coated
• Locked Rotor Current Rating 22.5 Amp
• Stator Winding Class B
