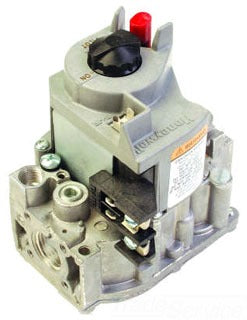

Honeywell VR8200A2132 Gas Control Valve

Honeywell VR8200A2132 Gas Control Valve

• Gas Control Valve
• Type Single-Stage, Pilot Operated
• Applicable Standard Ul, Csa
• Port Connection 1/2 Inch Threaded X 1/2 Inch Threaded
• Input Supply Rating 24 Volt Ac At 60 Hertz
• Temperature Rating 0 To 175 Deg F
• Pressure Rating 1/2 Psi
• Mounting Details Vertical
• Media Handled Gas
• Inclusions/Features (1) 3/4 Inch Straight Flange, (1) 1/2 Inch X 3/8 Inch Reducer Bushing, Natural To Lp Conversion Kit, Safety Shut-Off, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment
• Application Gas Fired, Standing Pilot, Single Stage
• Additional Information Overall Dimension 4-1/8 Inch Width X 3-1/4 Inch Depth X 5-3/16 Inch Height
• Connection Type 1/4 Inch Quick Connect Male Terminal
• Pressure Tapping Type 1/8 Inch Threaded With Plug
• Ignition Type Standing Pilot
