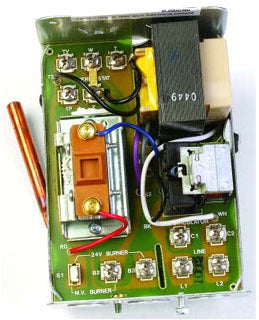

Honeywell L8148J1009 Temperature Control Relay

Honeywell L8148J1009 Temperature Control Relay

• Temperature Control Relay
• Brand Name Aquastat[R]
• Model L8148
• Voltage Rating 120 Volt Ac
• Minimum Ac Voltage Rating 120
• Frequency Rating 50/60 Hertz
• Operating Temperature 120 To 240 Deg F (High Limit)
• Humidity 0 To 95 Percent Rh (Non-Condensing)
• Size 4-5/16 Inch Width X 3-1/8 Inch Depth X 6-1/8 Inch Height
• Mounting Horizontal/Vertical
• Application High Limit, Burner, Circulator Motor
• Approval Ul, Csa
• Additional Information Contact Rating 7.4 Amp At 120 Volt Ac/3.7 Amp At 240 Volt Ac (Full Load), 44.4 Amp At 120 Volt Ac/22.7 Amp At 240 Volt Ac (Locked Rotor), 0.25 Amp At 0.25 To 12 Volt Dc
• Differential Temperature Rating 8 Deg F Fixed
• Operating Pressure 255 Psi (Immersion
