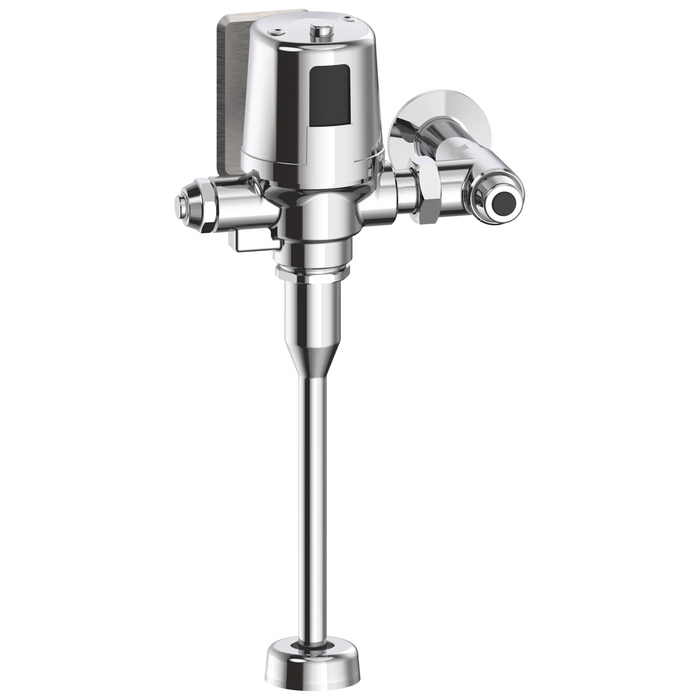

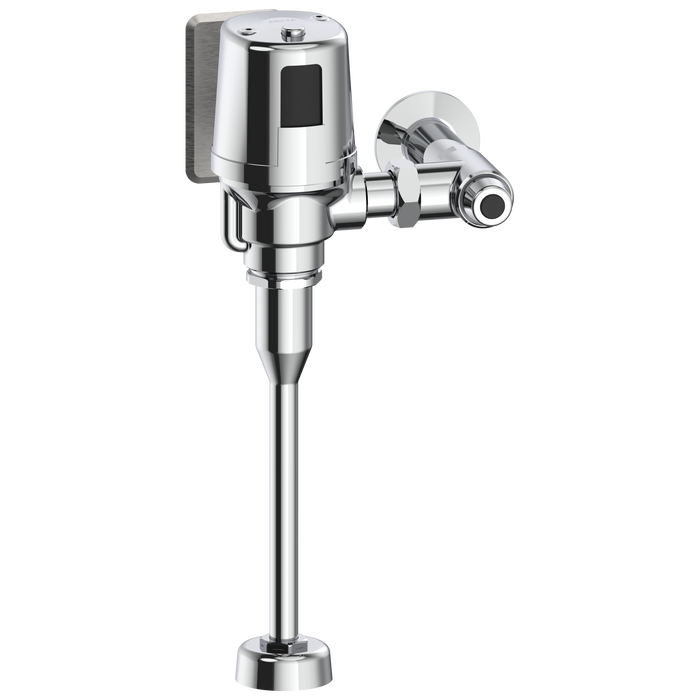

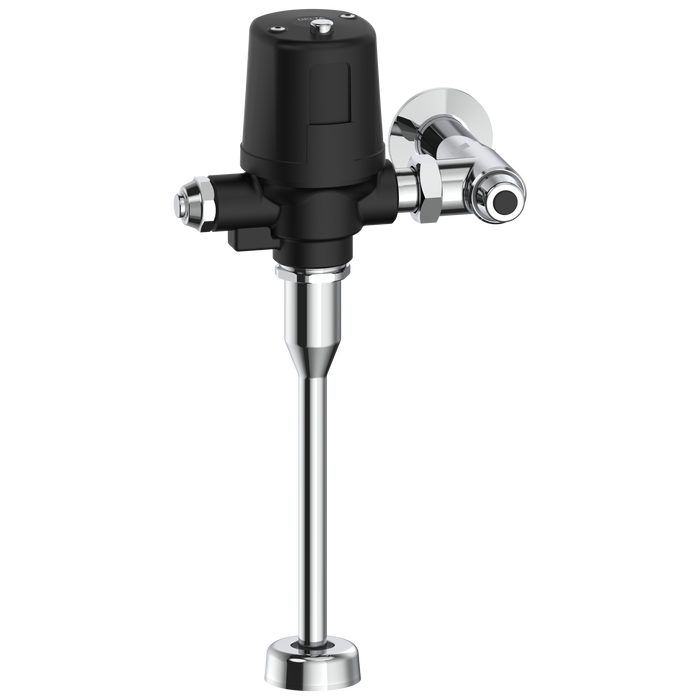

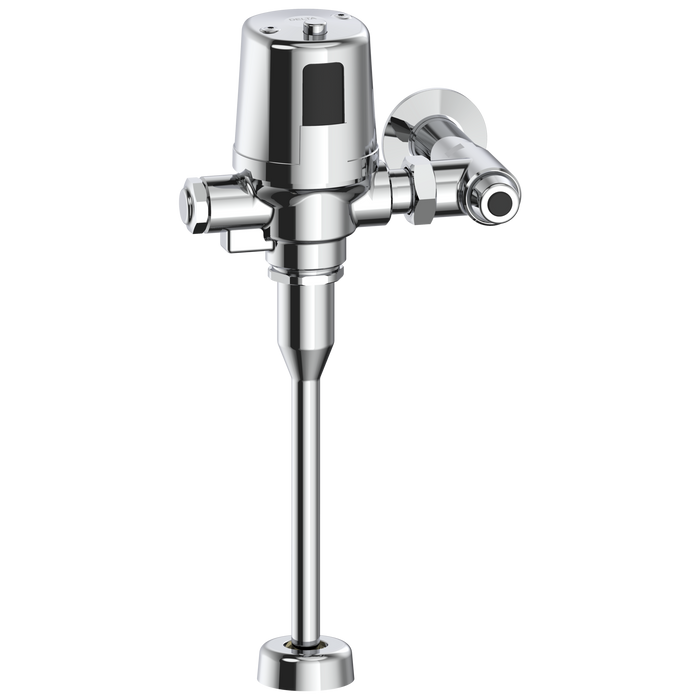

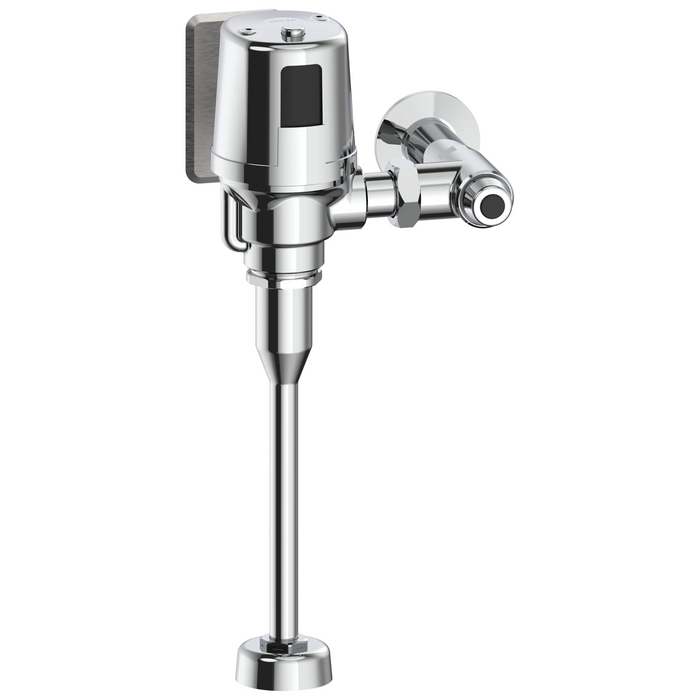

Commercial 81TBT / 81THW 81T231HWA Electronic Exposed Urinal Flush Valve - Hardwire Operated

Electronic Exposed Urinal Flush Valve - Hardwire Operated

• Hardwire flush valve for 3/4" top spud flushing urinal with H2Optics® sensor on valve - maximum 13" height
• EZ Adjust® system allows flush volume adjustments with a simple turn of a screw.
• Electronic operated non-hold-open metal override button with 5 second lockout
• Scratch resistant replaceable lens window
• Infrared sensor range adjustment of 8-24"
• Set-up sensor range adjustment indicator lights
• 110 to 24 VAC transformer required (sold separately - 060704A or 060771A)
• Urinal, 13" height
• Hardwire models, order transformer separately
• Electronic exposed flush valve
• Hands-free operation
• Body mounted sensor
• Vacuum breaker
• 3/4" copper sweat inlet
• Hardwire flush valve for 3/4" top spud flushing urinal with H2Optics® wall-mount sensor - maximum 13" height
• Mechanical manual override button
• Polished chrome plated vandal resistant metal cover
• Product weight: 9.5 lb
• Material: Brass
