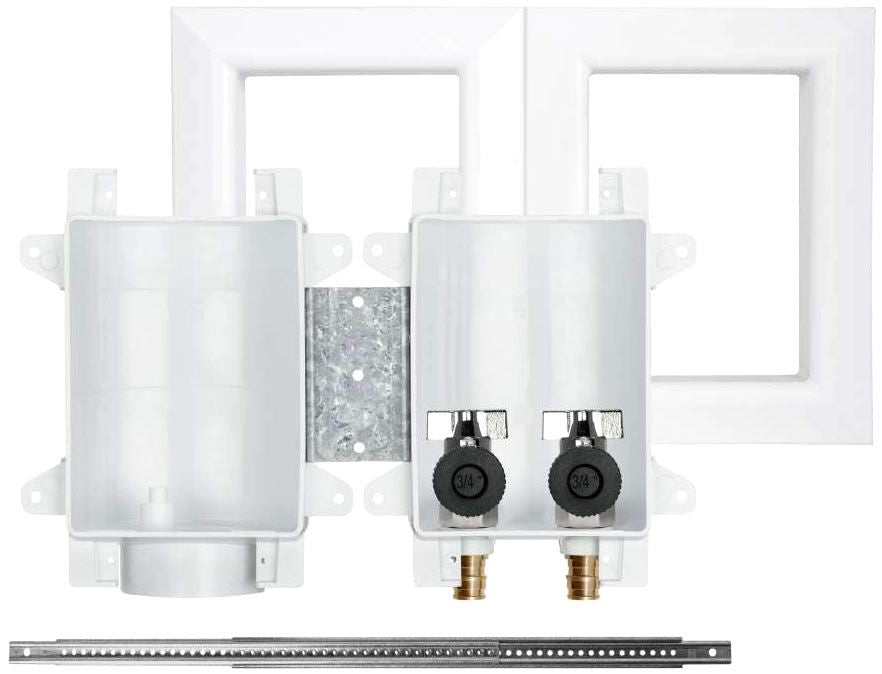

Sioux Chief 696-G2303WF Washing Machine Outlet Box
- Washing Machine Outlet Box
- Brand Name Oxbox[Tm]
- Model 696
- Item Washing Machine Outlet Box
- Type 2-Hole
- Applicable Standard Asme A112.18.1, Nsf 372, Cupc, Iapmo
- Pipe Connection 1/2 Inch Astm F1960 Grip Pex X 3/4 Inch Male Hose Threaded
- Box Size 3-5/8 Inch Width X 5-1/8 Inch Height
- Face Plate Size 11-1/2 Inch Width X 7-1/4 Inch Height
- Material Abs Plastic
- Valve Supplied Yes
- Valve Details High Quality 1/4 Quarter-Turn Ball, Forged Brass (Body), Copper, Ppsu, Cpvc, 304 Stainless Steel Grip Ring Brass Nut, Silicone Seal (Shank), Working Temperature 200 Deg F, Air/Working/Testing Water Pressure 150 Psig
- Inclusions/Features Galvanized Steel Bracket/Box Clip, Supply Box, Abs Plastic Frame, Debris Cover
- Additional Information Lead-Free
- Frame Opening Size 3-5/8 Inch Width X 5-1/8 Inch Height
- Bracket Size 18 Inch Length 5/8 Inch Width
- Test Nipple 5/8 Inch Outer Diameter
- Drain Connection 2 Inch Hub
- Excludes Arrester
