SKU 696-G1000WF
Sioux Chief 696-G1000WF Ice Maker Outlet Box
Original price
$39.97
Original price
$39.97
-
Original price
$39.97
Original price
$39.97
Current price
$33.51
$33.51
-
$33.51
Current price
$33.51
Availability:
in stock, ready to be shipped

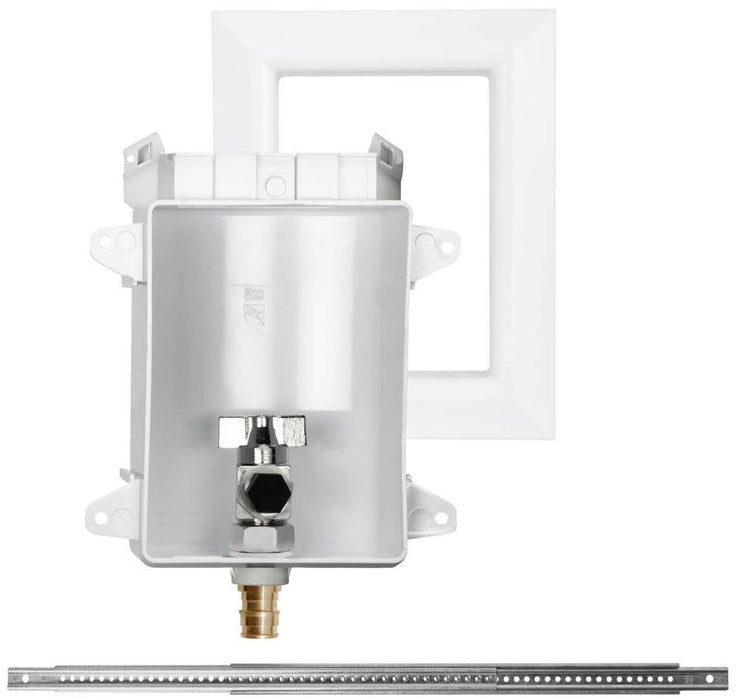

Sioux Chief 696-G1000WF Ice Maker Outlet Box
- Ice Maker Outlet Box
- Brand Name Oxbox[Tm]
- Model 696
- Item Ice Maker Outlet Box
- Type 1-Hole
- Applicable Standard Asme A112.18.1, Nsf 372, Cupc, Iapmo
- Pipe Connection 1/2 Inch Astm F1960 Grip Pex X 1/4 Inch Compression
- Box Size 4 Inch Width X 3-1/2 Inch Depth X 5-1/2 Inch Height
- Face Plate Size 5-3/4 Inch Width X 7-1/4 Inch Height
- Material Abs Plastic
- Valve Supplied Yes
- Valve Details High Quality 1/4 Quarter-Turn Ball, Lead-Free Brass (Body/Shank), Copper, Ppsu, Cpvc, 304 Stainless Steel Grip Ring (Shank), Working Temperature 200 Deg F, Air/Working/Testing Water Pressure 150 Psig
- Inclusions/Features Galvanized Steel Bracket, Supply Box, Abs Frame, Debris Cover
- Additional Information Lead-Free
- Frame Opening Size 3-5/8 Inch Width X 5-1/8 Inch Height
- Bracket Size 18 Inch Length
- Excludes Arrester
